KTM

KTM Macina Chacana 792 MTB Electric Bike

KTM Macina Chacana 792 MTB Electric Bike

Size
Regular price £4,849.00 GBP
Regular price £5,099.00 GBP Sale price £4,849.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • Price Match Guarantee
  • Free delivery over £500
  • Simple 14-day returns

Dominate the trails with the KTM Macina Chacana 792, a high-performance full-suspension e-MTB designed for serious mountain bikers who demand power, precision, and pure adrenaline. This premium machine is engineered for rugged terrain, offering top-tier components, cutting-edge technology, and bold aesthetics to elevate your off-road adventures.

Conquer Any Terrain with Power and Control

Built for aggressive trail riding, the Macina Chacana 792 is powered by the latest Bosch Performance CX Smart System, delivering 85Nm of torque for relentless climbing power. Whether tackling steep inclines or technical descents, this e-MTB ensures maximum traction and seamless pedal assist, so you can ride harder, faster, and longer.

Unmatched Handling and Suspension Performance

  • RockShox 35 Silver Air Fork (130mm travel) – Absorbs big hits and rough trails with ease, keeping your ride smooth and controlled.
  • RockShox Deluxe Select+ Rear Shock – Provides exceptional rear-end compliance for superior comfort and traction.
  • 29” DT Swiss H1900 Spline Wheels – Lightweight yet tough, these wheels roll effortlessly over obstacles for optimal stability.

Elite Components for a Premium Ride

  • Shimano Deore XT 12-Speed Drivetrain – Crisp, precise shifting with a wide gear range to tackle any gradient.
  • Shimano M6120 4-Piston Hydraulic Disc Brakes – Uncompromising stopping power for total confidence on fast descents.
  • Bosch PowerTube 750Wh Battery – Maximum range for extended adventures, fully integrated for sleek aesthetics and balance.

Ride in Style with Aggressive Design

The Macina Chacana 792 isn’t just built for performance—it looks fantastic too. With its striking Burnt Orange frame, sleek internal cable routing, and robust design, this bike turns heads on the trail. Every detail reflects KTM’s renowned craftsmanship and commitment to quality.

Why Choose the KTM Macina Chacana 792?

  • Ultimate Trail Domination – Engineered for tough climbs, rough descents, and technical singletrack.
  • Effortless Power – Bosch’s top-tier motor and battery system provide a natural, powerful riding experience.
  • Premium Build Quality – Designed for durability, precision, and long-term performance.
  • Long-Lasting Adventure – Ride further with a high-capacity battery and efficient pedal assist.

This isn’t just an e-MTB—it’s your ticket to the next level of mountain biking. Ride harder, explore further, and experience the thrill of uncompromised performance.

Order your KTM Macina Chacana 792 today at PEDAL & RIDE and take your off-road riding to new heights!



Additional Information

KTM EPAC Operating Manual

KTM Bosch Manuals



Specification

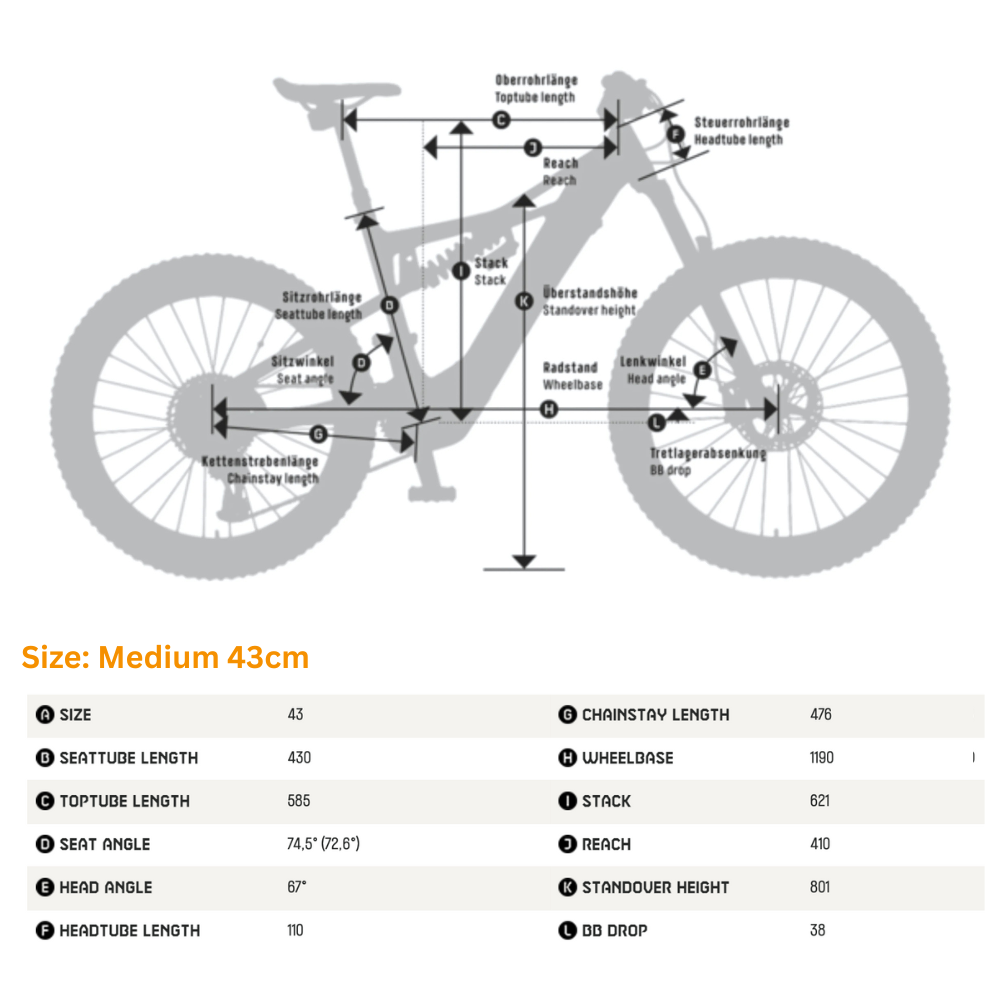

SIZE Medium: 43cm
FRAME Macina Chacana 29" Alloy6061 SLL-E 125mm UDH; PT750 Bosch Gen.4 / M-2286
FORK RockShox 35 Silver TK 29" 130mm 15x110 taper
REAR SHOCK RockShox Deluxe Select+ 230x57.5
BAR KTM COMP II Trail35 rizer15 760mm
HEADSET Acros AICR internal 1.1/8"-1.5" angle limit
STEM KTM TEAM II Trail35
CRANK KTM E-COMP ISIS 170mm Q16
CHAINRING FSA Megatooth steel 36T 12speed with chainguard
REAR DER. Shimano Deore XT M8100-12 SGS shadow+
CASSETTE Shimano Deore M6100-12 / 10-51
SHIFTER Shimano Deore M6100-12
BRAKES Shimano M4100 / MT420 4-Piston
RIMS Front: KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black



Rear: KTM Line - Shimano MT410B CL 32H 148-12TA / Ambrosio E30 Trail 32H 622x30TC / DT Alpine II 2.34 black

TYRES Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622
SADDLE Selle San Marco RND Manganese Rails
SEATPOST KTM COMP II dropper internal
LIGHTS N/A
MOTOR

BOSCH PT-CX7K4 E-System

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm

BATTERY Bosch PowerTUBE 750Wh SMART SYSTEM hor.
CHARGING Bosch STANDARD Charger 4A SMART SYSTEM
MAX ASSISTED SPEED 15.5mph
DISPLAY Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM
POWER LEVEL 5 levels
WEIGHT 27.6 kg
MAX LOAD 147Kg
