KTM

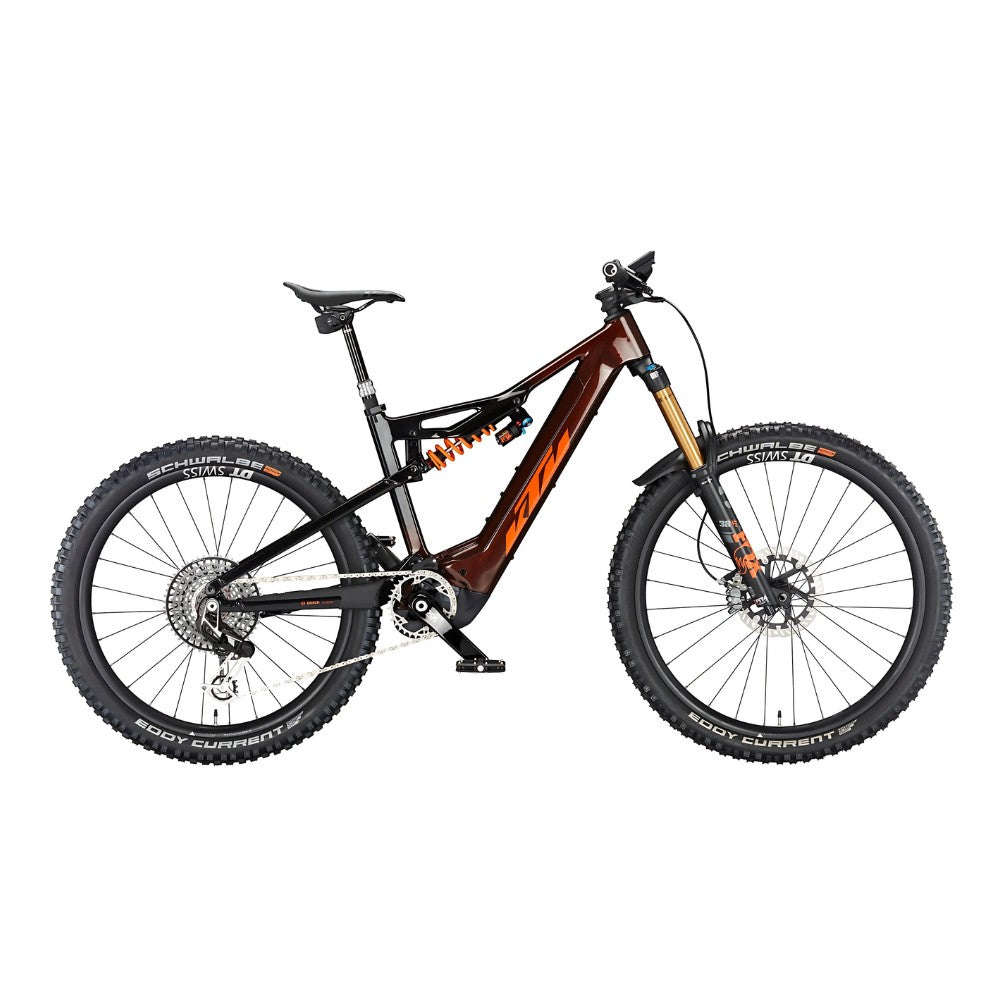

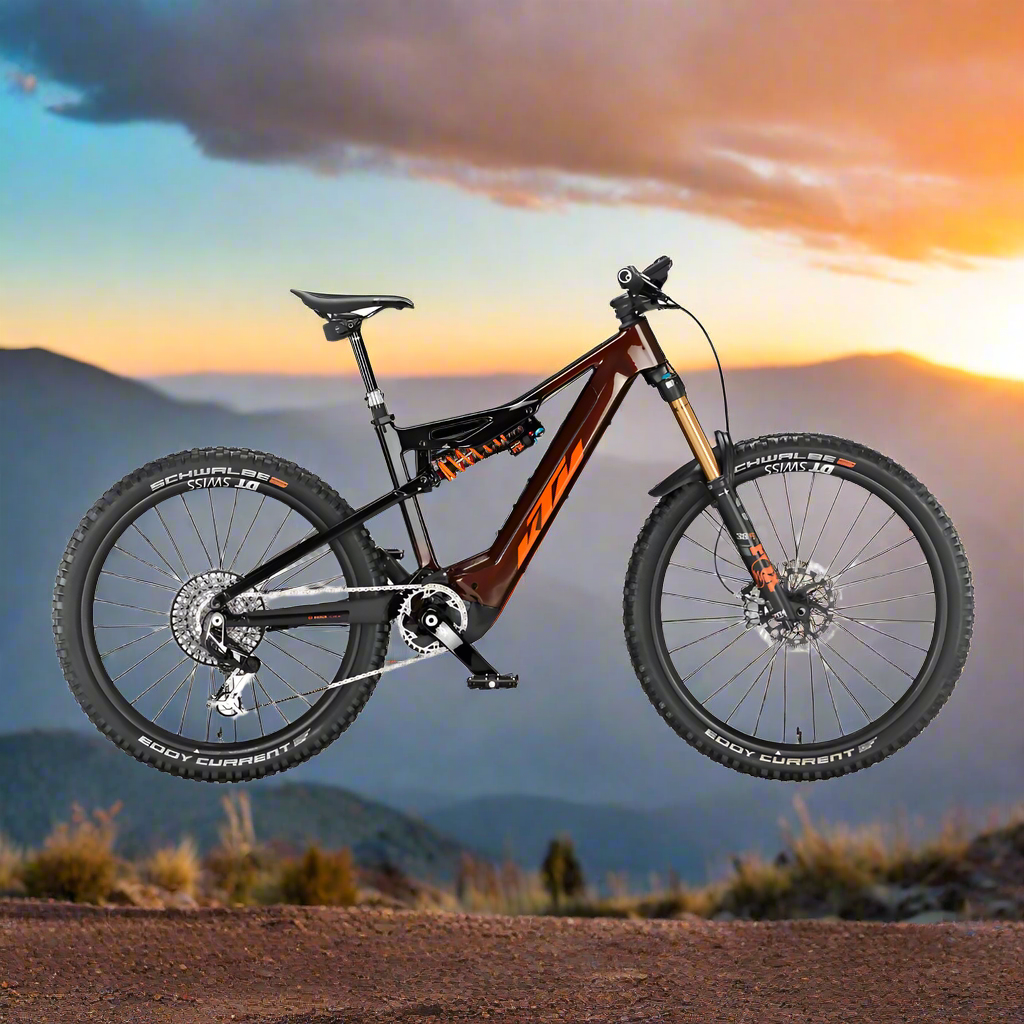

KTM Macina Prowler Exonic MTB Electric Bike

KTM Macina Prowler Exonic MTB Electric Bike

Size
Regular price £10,450.00 GBP
Regular price £10,999.00 GBP Sale price £10,450.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • Price Match Guarantee
  • Free delivery over £500
  • Simple 14-day returns

Unleash Unstoppable Performance with the KTM Macina Prowler Exonic!

Designed for the fiercest competitors and adrenaline-fueled trailblazers, the KTM Macina Prowler Exonic is a world-class, full-suspension e-MTB that delivers unrivaled power, precision, and control. With its lightweight carbon frame, high-performance Bosch motor, and premium components, this e-bike is built to dominate even the most extreme terrains.

Bosch Performance CX Race Motor – Power That Wins

  • The Bosch Performance Line CX Race motor is the most advanced Bosch drive unit, designed for explosive acceleration, maximum efficiency, and sustained peak performance
  • Pairs seamlessly with the Bosch Smart System, allowing full customization via the EBIKE FLOW APP

All-In Carbon Frame – Ultra-Light & Race-Ready

  • KTM’s high-performance Macina Prowler carbon frame delivers stiffness, strength, and precise handling in extreme conditions
  • STRAIGHT-LINE-LINK (SLL) suspension concept ensures sensitive and direct suspension response, keeping you in control on technical descents

Ultimate Enduro Suspension – 180mm Front & 170mm Rear Travel

  • Fox 38 Float Factory 180mm fork absorbs big hits and handles aggressive terrain with ease
  • Fox DHX2 Factory shock (170mm travel) provides maximum traction and smooth landings

Dimension-Mix (DiMMiX) Wheel Setup – Unmatched Stability & Traction

  • 29” front wheel for superior stability and roll-over capability
  • 27.5” PLUS rear wheel for optimal power transfer and grip, keeping you planted on steep climbs and loose terrain

SRAM XX Eagle T-Type Transmission – Shifting Perfection

  • 12-speed electronic shifting delivers flawless gear changes under full load
  • Built for precision, durability, and reliability in the toughest conditions

PowerTube Top Loader (PTTL) – User-Friendly 750Wh Battery Handling

  • KTM’s own PTTL system ensures easy access and handling of the Bosch 750Wh PowerTube battery, providing long-range performance for all-day riding



Who is this bike for?

  • Racers and elite riders competing in enduro and e-MTB events
  • Aggressive trail riders who need race-proven suspension and geometry
  • E-MTB enthusiasts who want the latest Bosch Smart System technology
  • Anyone who demands the best in power, handling, and suspension performance



Ready to take your riding to the next level? Don’t settle for anything less than the KTM Macina Prowler Exonic.

Order Now & Dominate the Trails!



Additional Information

KTM EPAC Operating Manual

KTM Bosch Manuals



Specification

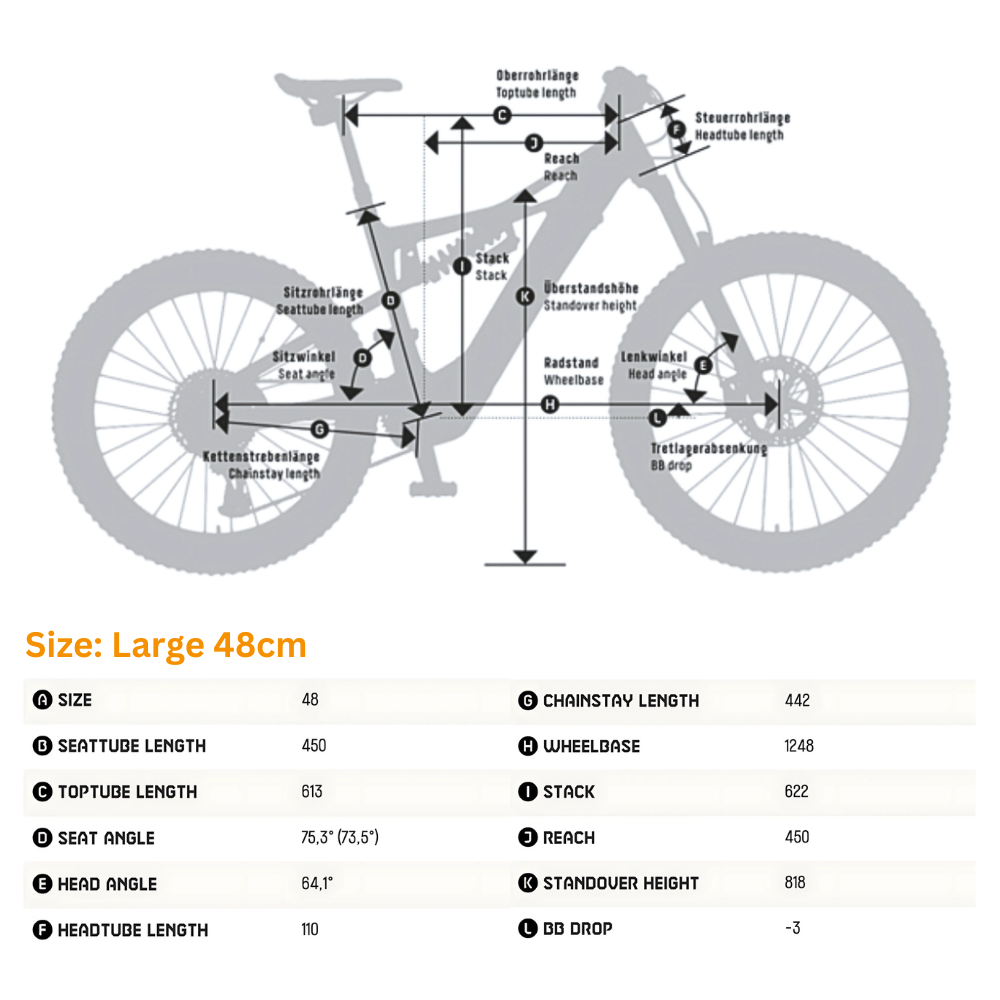

SIZE Large: 48cm
FRAME Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
FORK FOX 38 Float 29" Factory e-bike 180mm FIT4 15x110
REAR SHOCK FOX DHX2 Factory 2Position 250x75
BAR KTM Prime Trail35 Carbon rizer20 800mm
HEADSET Acros AICR internal 1.1/8"-1.5" angle limit
STEM KTM TEAM II Trail35
CRANK FSA CK-702/IS Carbon 160mm
CHAINRING SRAM Eagle Transmission 36T Direct Mount
REAR DER. SRAM XX Eagle T-Type 12speed
CASSETTE SRAM XX Eagle T-Type XS-1297 / 10-52
SHIFTER SRAM POD Ultimate AXS Controller
BRAKES Magura MT7 4-Piston
RIMS

Front: DT Swiss HXC 1501 SPLINE 29 CL 110/15TA / 622x30TSS

Rear: DT Swiss HXC 1501 SPLINE 27 CL 148/12TA / 584x35TSS

TYRES

Front: Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622

Rear: Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584

SADDLE Selle San Marco GND Open Fit Supercomfort Manganese Rails
SEATPOST RockShox Reverb AXS wireless
LIGHTS
MOTOR

BOSCH PT-CXR7K4 E-System

Bosch PERFORMANCE CX RACE Gen.4 SMART SYSTEM - 25km/h / 85Nm

BATTERY Bosch PowerTUBE 750Wh SMART SYSTEM hor.
CHARGING Bosch STANDARD Charger 4A SMART SYSTEM
MAX ASSISTED SPEED 15.5mph
DISPLAY Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM
GPS MODULE Bosch GPS Modul SMART SYSTEM
POWER LEVEL 5 levels
WEIGHT 24.90 kg
MAX LOAD 126 kg
