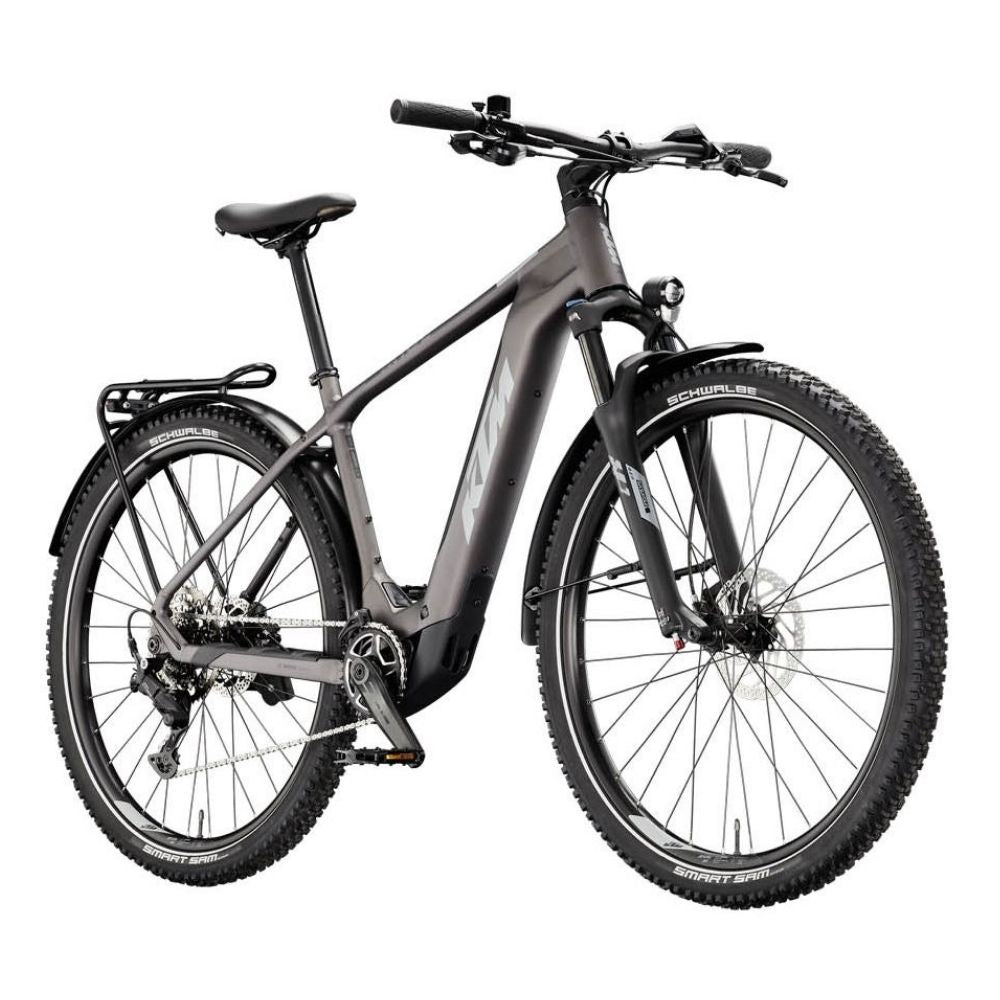

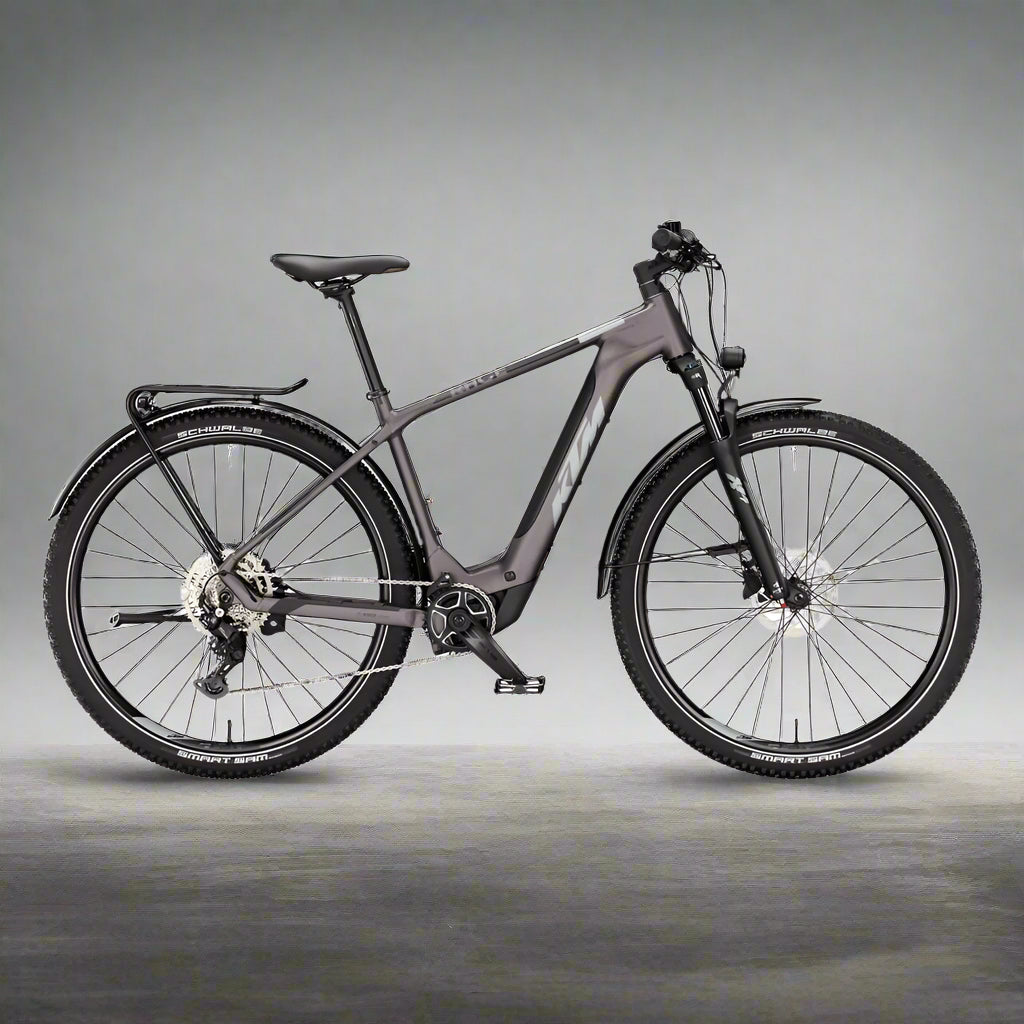

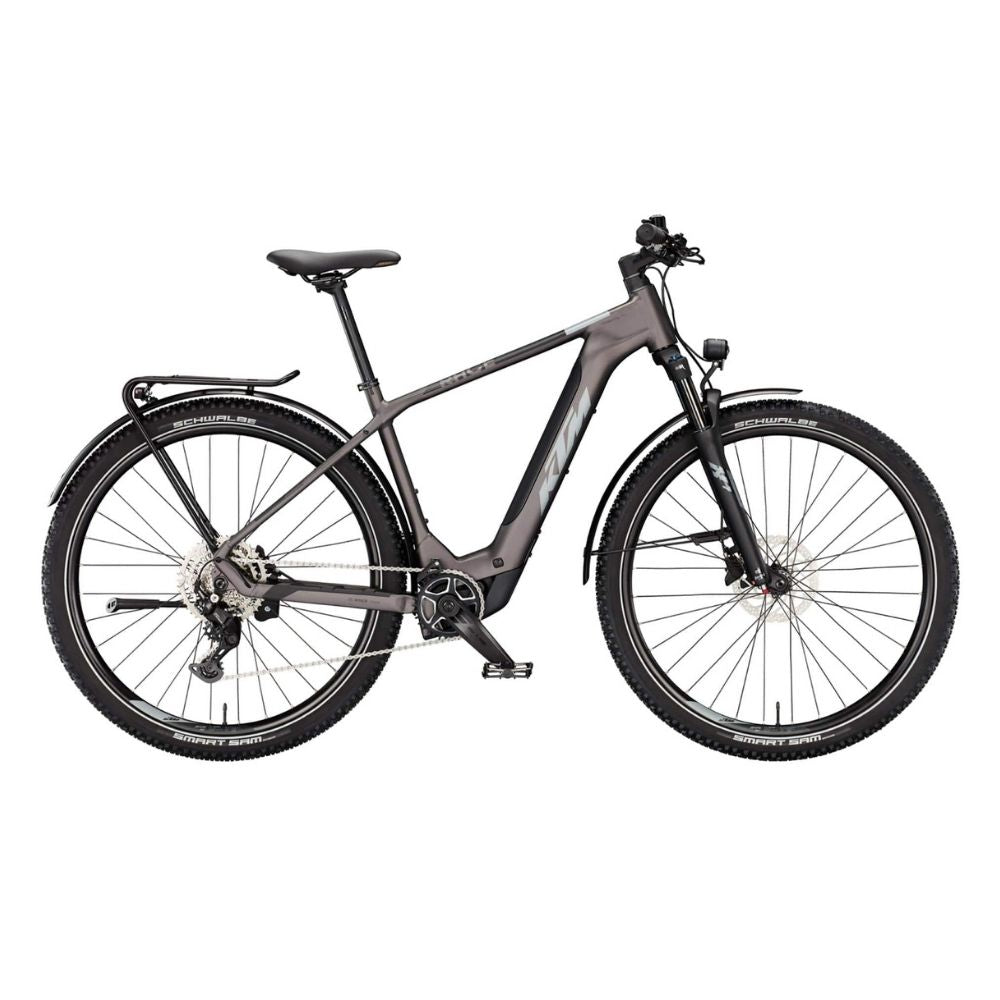

KTM Macina Race SX LFC Hybrid Electric Bike (CLEARANCE)

KTM Macina Race SX LFC Hybrid Electric Bike (CLEARANCE)

Size
Regular price £2,929.00 GBP
Regular price £3,199.00 GBP Sale price £2,929.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • Price Match Guarantee
  • Free delivery over £500
  • Simple 14-day returns

The KTM Macina Race SX LFC is designed for riders seeking a versatile e-bike that seamlessly transitions from daily commutes to weekend adventures. Its lightweight aluminium frame, integrated Bosch Performance Line SX motor, and comprehensive touring equipment make it an ideal companion for both urban and off-road journeys.

Lightweight Design with Robust Capabilities

Weighing just 21.8 kg, the Macina Race SX LFC offers a nimble riding experience without compromising on power. The Bosch Performance Line SX Smart System delivers 55Nm of torque, ensuring smooth acceleration and efficient energy use. Paired with a 400Wh CompactTube battery, it provides ample range for extended rides.

Equipped for Every Journey

This e-bike comes fully equipped with features that enhance both safety and convenience:

  • Frame: Macina Race 29" Alloy 6061 with integrated Bosch CompactTube 400Wh battery
  • Motor: Bosch Performance Line SX Smart System, 250W, 55Nm torque
  • Display: Bosch Purion 200 with remote
  • Fork: Suntour X1 32 Air 29" LOR, 100mm travel
  • Drivetrain: Shimano CUES U4000-9 Shadow+ with 11-46T cassette
  • Brakes: Shimano MT201/MT200 hydraulic disc brakes with 180mm front and 160mm rear rotors
  • Tyres: Schwalbe Smart Sam Performance 57-622
  • Lighting: Litemove SE-150 LED front (150Lux) and AXA Juno LED rear
  • Accessories: SKS EVO AL 65mm mudguards, KTM Alumee light carrier (Snap-it 2.0), Hebie 28" adjustable kickstand.

Additional Information

Bosch eBike Range Assistant

KTM EPAC Operating Manual

KTM Bosch Manuals



Specification

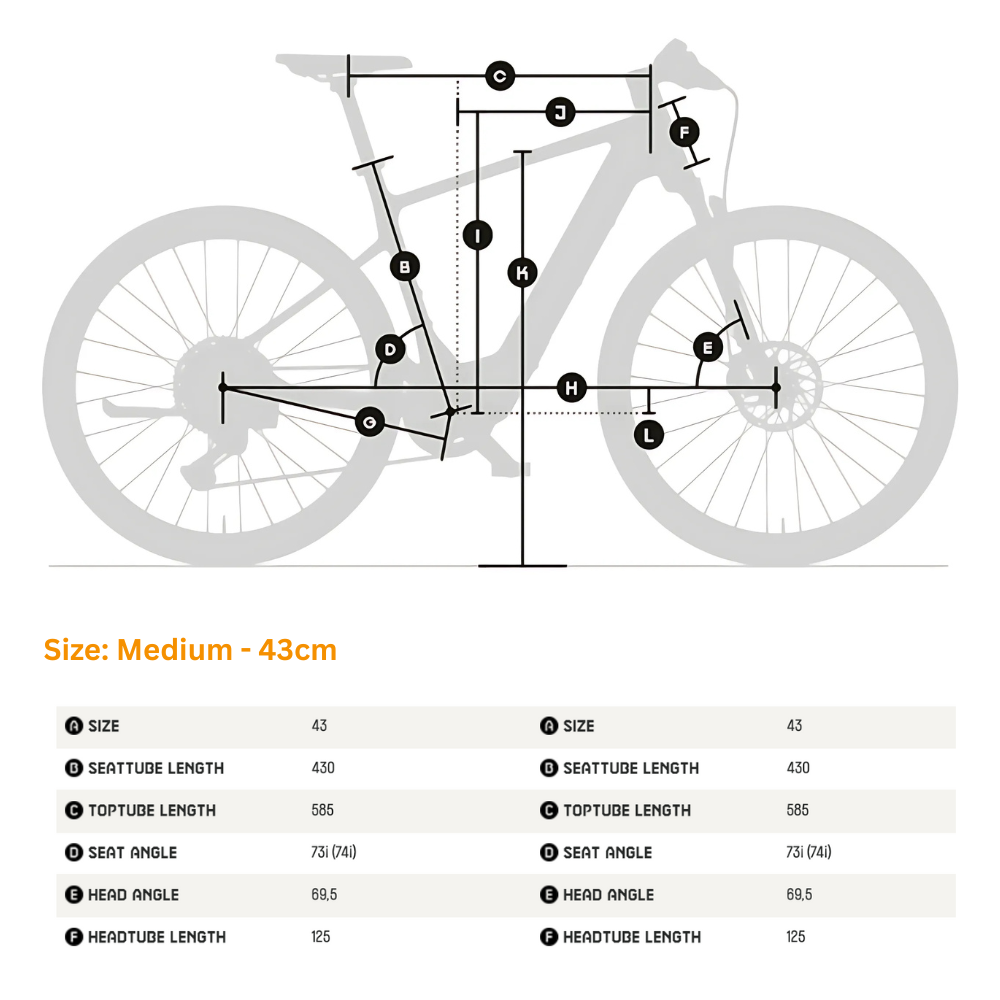

SIZE Medium: 43cm (suitable for 165cm-172cm body height)
FRAME Macina Race 29" Alloy 6061 with integrated Bosch CompactTube 400Wh battery
FORK Suntour X1 32 Air 29" LOR, 100mm travel, 15x110mm thru-axle
BAR KTM Team II Rizer15, 700mm width
HEADSET Acros ICR 1.5" angle limit
STEM KTM +7° ICR
CRANK KTM E-TEAM2 ISIS 170mm Q8
REAR DER.     Shimano CUES U4000-9 Shadow+
CASSETTE Shimano LG400-9 / 11-46T
SHIFTER Shimano CUES U4000-9
BRAKES Shimano MT201/MT200 hydraulic disc brakes – 180mm front, 160mm rear rotors
RIMS KTM Line - Shimano TC500B CL 32H 110-15TA, Ryde Rival30 32H 622x30C, DT Champion 2.0 black//KTM Line - Shimano CUES TC500B CL 32H 148-12TA, Ryde Rival30 32H 622x30C, DT Alpine II 2.34 black
TYRES Schwalbe Smart Sam Performance 57-622
SADDLE Selle Royal Explora Athletic Gel with KTM Team II 27.2/400 post

SIDE STAND Hebie 28" adjustable
LIGHTS Litemove SE-150 LED front (150Lux), AXA Juno LED rear
MOTOR Bosch Performance Line SX Smart System, 250W, 55Nm torque
BATTERY Bosch CompactTube 400Wh Smart System, integrated
CHARGING Bosch Compact Charger 2A Smart System
MAX ASSISTED SPEED 15.5 mph
DISPLAY Bosch Purion 200 with remote Smart System
POWER 5 levels
WEIGHT 21.8 kg
MAX LOAD 113 kg
