KTM

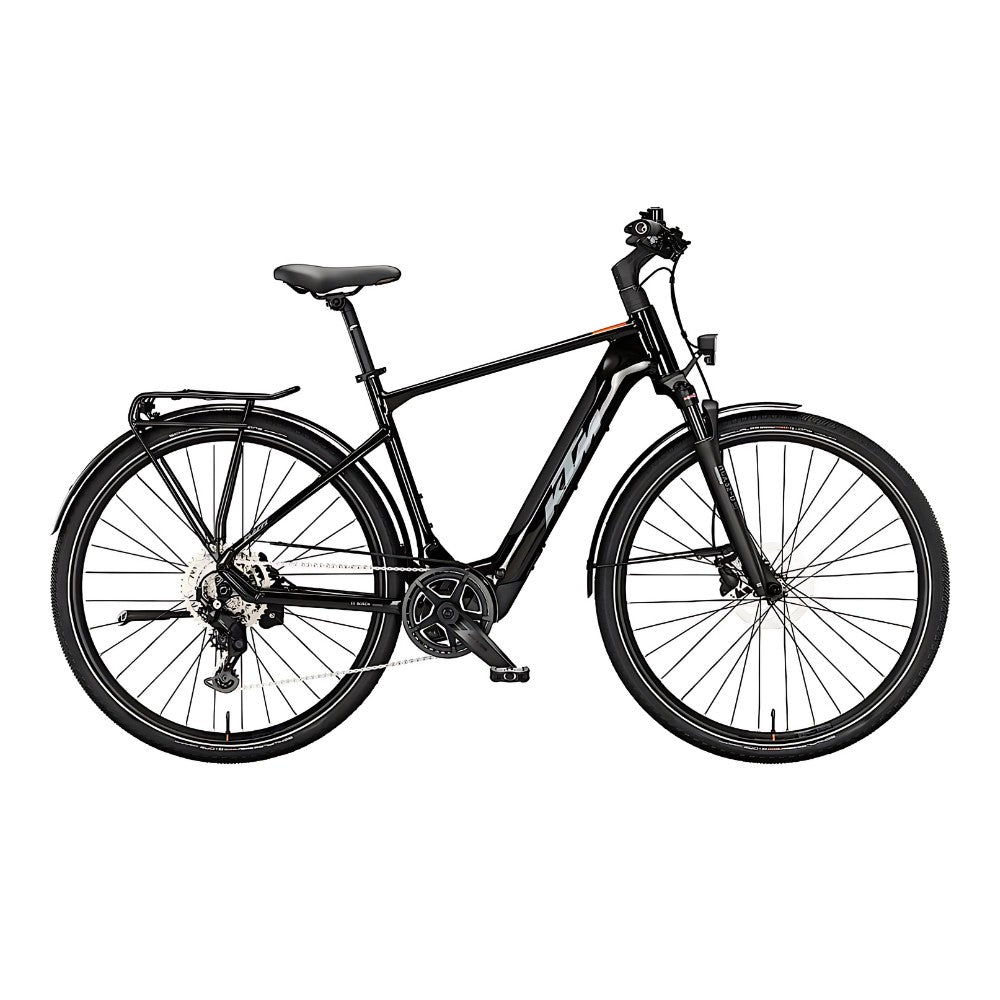

KTM Macina Sport SX 20 Hybrid Electric Bike (CLEARANCE)

KTM Macina Sport SX 20 Hybrid Electric Bike (CLEARANCE)

Size
Regular price £2,829.00 GBP
Regular price £3,099.00 GBP Sale price £2,829.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • Price Match Guarantee
  • Free delivery over £500
  • Simple 14-day returns

The KTM Macina Sport SX 20 is not just an e-bike—it’s a revolution in lightweight trekking. KTM has redefined e-mobility by stripping away excess weight while keeping performance at the highest level. The result? A sleek, agile, and powerful machine that makes every ride feel effortless.

Whether you're commuting, exploring country lanes, or tackling long-distance tours, the Macina Sport SX 20 delivers a ride that’s as smooth as it is thrilling.

Ultra-Lightweight & Agile

Gone are the days of heavy, bulky e-bikes. The Macina Sport SX 20 boasts sleek tube shapes and a compact motor bracket unit, making it significantly lighter than traditional e-bikes. You’ll feel the difference as you zip through city streets or climb rolling hills with ease.

Powerful Bosch SX Motor – Natural Ride Feel

Equipped with the Bosch Performance Line SX motor, this e-bike delivers a natural and responsive riding experience. With 55Nm of torque and an efficient 400Wh battery, you get all the power you need while maintaining a lightweight, sporty feel. Whether you're tackling daily commutes or weekend adventures, this motor keeps you moving effortlessly.

KTM Trekking Geometry – Maximum Comfort & Control

Designed with KTM’s proven trekking geometry, the Macina Sport SX 20 offers unmatched comfort and stability on long rides. Its perfect balance of agility and endurance ensures you stay in control, whether weaving through urban traffic or cruising along countryside trails.

Sleek Design, Premium Build

A bike that looks as good as it rides. With a streamlined frame and a fully integrated Bosch system, the Macina Sport SX 20 is the definition of modern elegance. Plus, high-quality components ensure durability, reliability, and a hassle-free ride.

Long-Distance Adventure Ready

Designed for both daily use and extended tours, the Macina Sport SX 20 is your perfect companion for everything from quick commutes to epic weekend getaways. The lightweight construction means less fatigue, and the powerful motor ensures you always have an extra boost when you need it.

Ride Lighter, Ride Further, Ride Smarter

The KTM Macina Sport SX 20 is not just an e-bike—it’s a gateway to a new level of freedom on two wheels. If you’re looking for a bike that blends performance, elegance, and cutting-edge e-mobility, this is it.



Additional Information

KTM EPAC Operating Manual

KTM Bosch Manuals



Specification

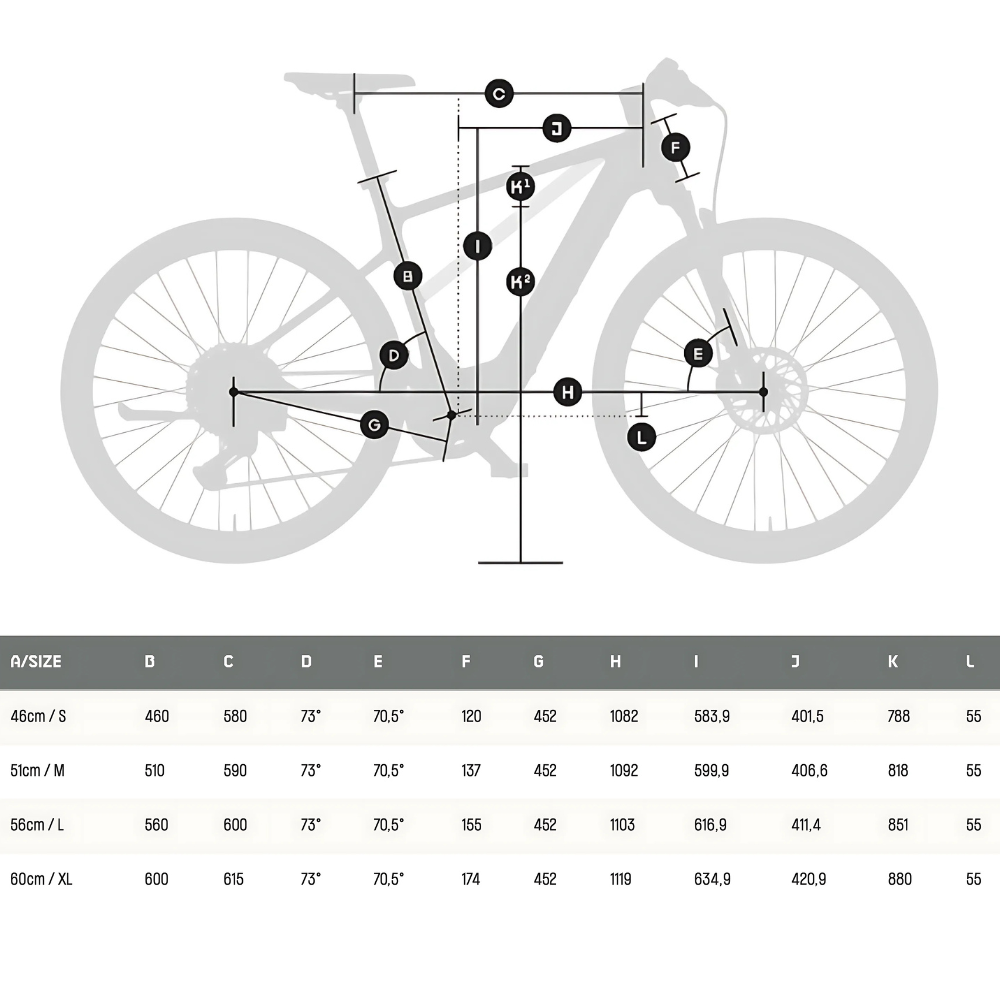

SIZE Large: 56cm
FRAME Macina Trekking Offroad Alloy 6061 CPT400Wh Bosch BDU31 / T-4110
FORK Suntour NCX32-D Air LO 63mm
BAR KTM Comp II low rizer 640mm
HEADSET Acros ICR 1.5" angle limit
STEM KTM +20° ICR
CRANK KTM E-TEAM2 ISIS 170mm Q8
CHAINRING KTM aluminium 42T Direct Mount
REAR DER. Shimano CUES U4000-9 shadow
CASSETTE Shimano LG400-9 / 11-46T
SHIFTER Shimano CUES U4000-9 display
BRAKES Shimano MT201 / MT200 2-Piston
RIMS

Front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Black Jack Ready25 32H 622x25TC DT Champion 2.0 black

Rear: KTM Line - Shimano CUES TC500 CL 32H 142-12TA Black Jack Ready25 32H 622x25TC DT Alpine II 2.34 black

TYRES Schwalbe G-One Overland SuperGround TLE 45-622
SADDLE Selle Royal Explora Gel
REAR RACK KTM light (snap-it 2.0)
MUDGUARDS

SKS EVO AL 55mm black matt

LIGHTS

Front: Litemove RX-50 e-bike 50Lux

Rear: AXA Juno LED

MOTOR Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
BATTERY Bosch CompactTube 400Wh SMART SYSTEM
CHARGING Bosch Compact Charger 2A SMART SYSTEM
MAX ASSISTED SPEED 15.5mph
DISPLAY Bosch PURION 200 Display & Remote SMART SYSTEM
POWER LEVEL 5 levels
WEIGHT 21Kg
MAX LOAD 132Kg



30 days free Laka Insurance
Ecologi 1 tree planted badge
