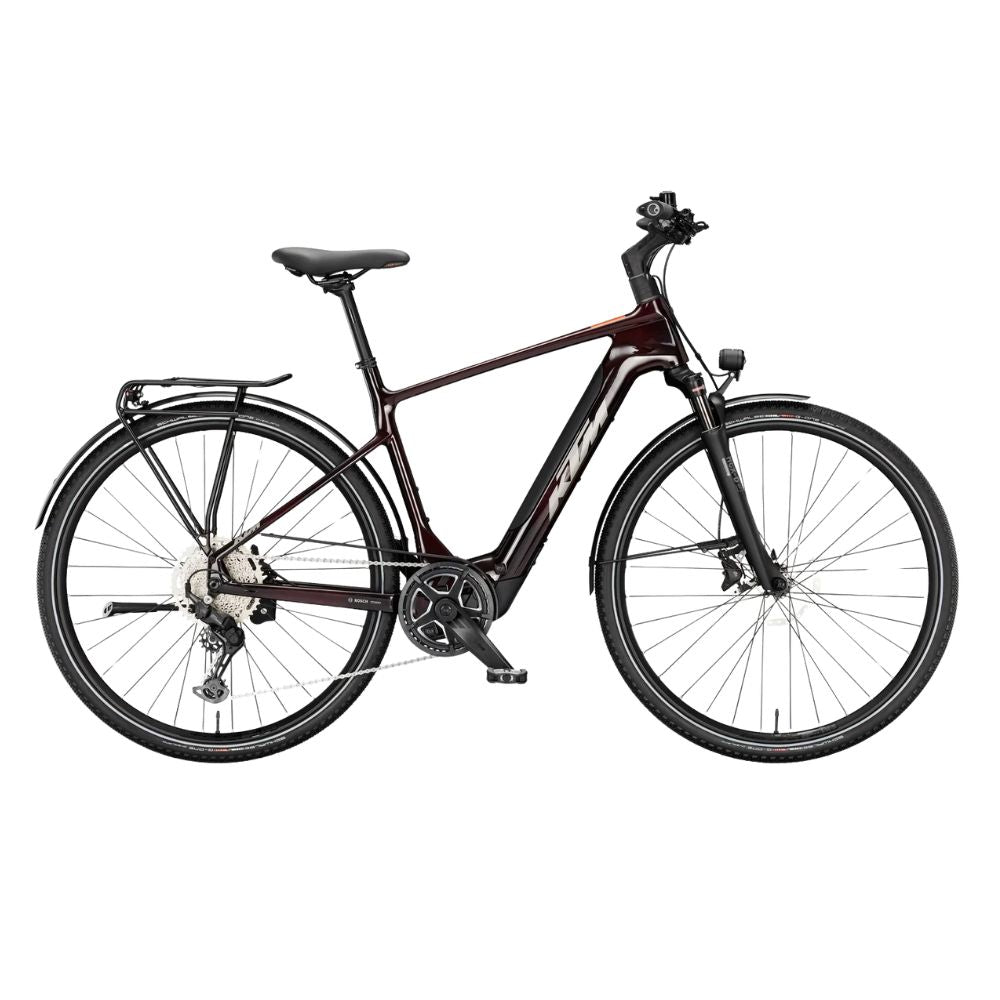

KTM Macina Sport SX Elite H Hybrid Electric Bike (CLEARANCE)

KTM Macina Sport SX Elite H Hybrid Electric Bike (CLEARANCE)

Size
Regular price £3,529.00 GBP
Regular price £3,899.00 GBP Sale price £3,529.00 GBP
Sale Sold out
Shipping calculated at checkout.
  • Price Match Guarantee
  • Free delivery over £500
  • Simple 14-day returns

Experience the pinnacle of ultra lightweight e-trekking with the KTM Macina Sport SX Elite. Crafted with a full carbon frame and powered by Bosch's Performance Line SX Smart System, this hybrid electric bike offers unmatched agility and performance for both city commutes and long-distance tours.

Unparalleled Performance and Comfort

The Macina Sport SX Elite is engineered for those who demand excellence in every ride. Its carbon frame not only reduces weight but also enhances ride comfort. The Bosch Performance Line SX motor delivers 55Nm of torque, ensuring smooth and responsive assistance up to 15.5mph even up rolling hills. Paired with a 400Wh Bosch CompactTube battery, you can enjoy extended rides without range anxiety.

KTM Trekking Geometry – Maximum Comfort & Control

Designed with KTM’s proven trekking geometry, the Macina Sport SX Elite offers unmatched comfort and stability on long rides. Its perfect balance of lightweight frame, agility and endurance ensures you stay in control, whether weaving through urban traffic or cruising along countryside trails.

Sleek Design, Premium Build

A bike that looks as good as it rides. With a streamlined frame and a fully integrated Bosch system, the Macina Sport SX Elite is the definition of modern elegance. Plus, high-quality components ensure durability, reliability, and a hassle-free ride.

Long-Distance Adventure Ready

Designed for both daily use and extended tours, the Macina Sport SX Elite is your perfect companion for everything from quick commutes to epic weekend getaways. The ultra lightweight construction means less fatigue, and the powerful motor ensures you always have an extra boost when you need it.

Premium Components for a Superior Ride:

  • Frame: Macina Trekking Onroad Premium lightweight Carbon UDH CPT400Wh Bosch BDU31 / T-4100
  • Fork: Suntour NCX-D Air LO 63mm taper for a smooth adjustable ride
  • Motor: Bosch Performance Line SX Smart System – 55Nm torque for great uphill power
  • Battery: Bosch CompactTube 400Wh Smart System for longer range
  • Display: Bosch Purion 200 Display & Remote Smart System for clear control
  • Drivetrain: Shimano CUES U6000-10/11 Shadow+ with Shimano LG400-10 / 11-48T cassette for smoother, more stable shifting — especially good for e-bikes, commuters, or light off-road riders who want low maintenance and durability
  • Brakes: Shimano MT402 (3-F) / MT410 2-Piston with 180mm front and 160mm rear rotors for great stopping power
  • Wheels: KTM Line – Shimano Deore M6000 CL 32H 100-5QR, built for e-bikes and smooth rolling on rough terrain
  • Tyres: Schwalbe G-One Overland SuperGround TLE 45-622 for road or gravel tracks
  • Lighting: Litemove SE-150 LED front (150Lux) and AXA Juno LED rear
  • Accessories: SKS EVO AL 55mm black matt mudguards, KTM light (snap-it 2.0) carrier, Hebie 28" adjustable kickstand for leisure, touring, adventure, or riding to work.

Ride Lighter, Ride Further, Ride Smarter

The KTM Macina Sport SX Elite is not just an e-bike—it’s a gateway to a new level of lightweight freedom on two wheels. If you’re looking for a bike that blends performance, elegance, and cutting-edge e-mobility in a lightweight package, this is it.



Additional Information

Bosch eBike Range Assistant

KTM EPAC Operating Manual

KTM Bosch Manuals



Specification

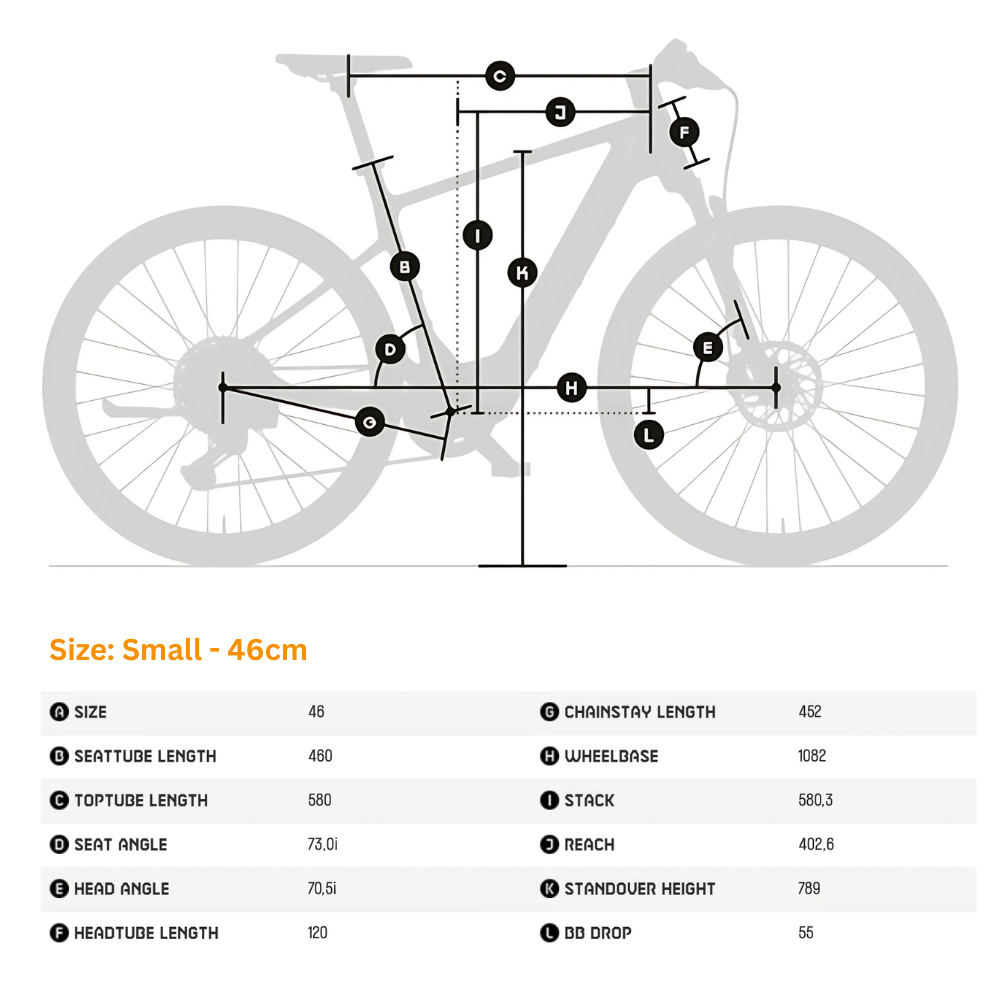

SIZE Small: 46cm (suitable for 165-169cm body height, standover height 78.9cm)
FRAME Macina Trekking Onroad Premium Carbon UDH with Bosch BDU31 / T-4100 CompactTube 400Wh
FORK Suntour NCX-D Air LO 63mm, tapered
BAR KTM Line Team II Low Riser Alloy bar 640mm
HEADSET ACROS ICR 1.5" Angle Limit
STEM KTM +20° ICR
CRANK KTM E-TEAM2 ISIS 170mm Q8
REAR DER.     Shimano CUES U6000-10/11 Shadow+
CASSETTE Shimano LG400-10 / 11-48T
SHIFTER Shimano CUES U6000
BRAKES Shimano MT402/MT410 2-Piston hydraulic disc brakes – 180mm/160mm rotors
RIMS KTM Line – Shimano Deore M6000 CL 32H 100-5QR
TYRES Schwalbe G-One Overland SuperGround TLE 45-622
SADDLE Selle Royal Explora Gel with KTM Team II 27.2/350 post
SIDE STAND Hebie 28" adjustable
REAR RACK KTM light (snap-it 2.0) carrier
MUDGUARDS SKS EVO AL 55mm Black Matt
LIGHTS Litemove SE-150 LED front, AXA Juno LED rear
MOTOR Bosch Performance Line SX Smart System, 250W, 55Nm
BATTERY Bosch CompactTube 400Wh Smart System, integrated
CHARGING External Bosch 2A Smart Charger
MAX ASSISTED SPEED 15.5 mph
DISPLAY Bosch Purion 200 Display & Remote Smart System
POWER 5 levels
WEIGHT 18.5kg
MAX LOAD 130kg
